GLAZED-IN PANELS
NDG glazed-in (metal) panels use the highest-grade finishes and materials in the industry and are designed to fit into glazing frames typically used for glass. Offering industry leading durability, flatness and thermal performance at price you can afford!

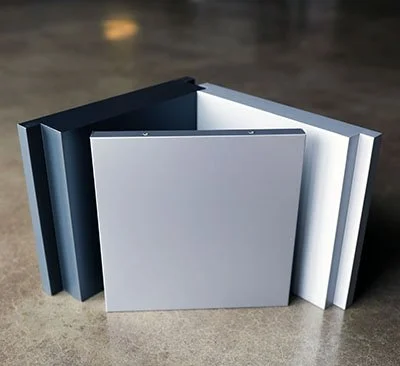

Our glazed-in metal panels (GIP's) are available in a variety of aluminum plate and ACM (Aluminum Composite Materials) with variable thicknesses, profiles and colors. Choose from single or double sided, to accommodate different design requirements. Design them to "pop-out" in the front and back to accommodate increased R-values and design options. GIP's are installed using the same pressure plates, gaskets, or structural glazing methods as glass panels, allowing them to be seamlessly integrated into curtain wall or storefront systems.
These GIP's are the answer to all your metal spandrel needs!
Insulated values from R-5 to R-35 with a rigid insulation core
Impact resistance - Meets FL Bldg. code approval and HVHZ testing
Colors - AMMA 2605 finishes available
Finishes - all PVDF coated materials with 20 - 30-year finish warranties
Meets ASTM E84 for smoke and flame spread, Class A rating
Choose your premium materials! (not the industry standard sheet metal)
2mm (.080") aluminum (standard)
3mm (.118") aluminum plate (standard)
4mm FR ACM (optional)
Available in standard solid, mica or metallic colors
Custom colors too!
